7/16 connectors are mechanically very rugged coaxial connectors with screw lock. They have a characteristic impedance of 50 ohm and are applicable with excellent electrical properties up to 7.5 GHz. Transmission of medium to high power with radio transmitters and low PIM transmission of received signals such as in mobile phone base stations are typical applications.
4.3-10 connectors offer very low PIM performance together with weight and compactness advantages. A key feature of this connector is the separation of the electrical and mechanical plane, which results in a lower coupling torque and the possiblility of offering the connector with screw, hand-screw and quick-lock design, thus simplifying the installation effort and offering for all mechanisms a very high and reliable electrical performance independently from the torque applied.
BMA blind mate connectors open up special dimensions in microwave applications up to 18 GHz. We offers a range of connectors for fixed as well as floating configurations with any axial or radial misalignment taken out by the outer contact of the jacks. The BMA series presents an outstanding range of products featuring high reliability and ease of assembly.
MMCX connectors are intended for use in applications where the smallest dimensions have to be achieved. These connectors can be used in applications from DC to 6 GHz. The reliable "snap-on" coupling mechanism ensures that the electrical parameters are consistently reproduced. Due to its non-slotted outer contact, the MMCX series provides a low RF leakage. In addition, SMT MMCX connectors fully meet today’s SMT (Surface Mount Technology) requirements with superior design, material selection and packaging. Our SMT connectors are suitable to all reflow-soldered SMT-PCBs where impedance matching or screened signal transmission is necessary.
N connectors are available with 50 ohm and 75 ohm impedance. The frequency range extends to 18 GHz, depending on the connector and cable type. The screw-type coupling mechanism provides a sturdy and reliable connection. N connectors are available for flexible cables, for semi-rigid cables and for corrugated copper tube cables. Cable entries: clamp, crimp and solder types available.
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test and measurement, instruments, avionics, etc. SMA is classified into the two categories.Our SMA connectors for high-end applications or applications subject to rough conditions

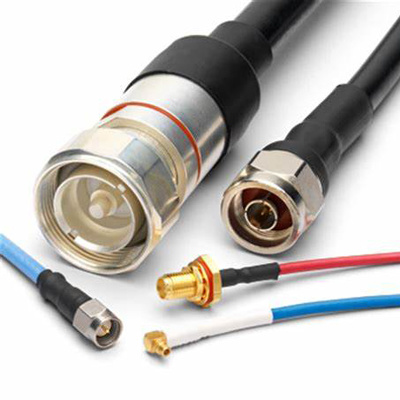

Cable assembly is applicable to connections between the cabinet and modules, cabinet and cabinet, antenna and feeder cables, feed cable and cabinet. Cable assembly is various in their types and kinds, so in addition to standard cable length, the users can also require special length and specifications.
